8.3.1 Transfer Characteristics

First the influence of the peak of the steering pulses on the operation points is analyzed. As expected the voltage shift between the up and the down curves increases if the applied amplitude is increased. The influence on the up curve is much stronger than on the other branch (Fig. 8.17 and Fig. 8.18).

**Figure 8.17:** Transfer characteristics for different peak voltages, linear scale
$\resizebox{\fulllength}{!}{ \includegraphics[width=\fulllength]{comp_lin_img.eps} }$

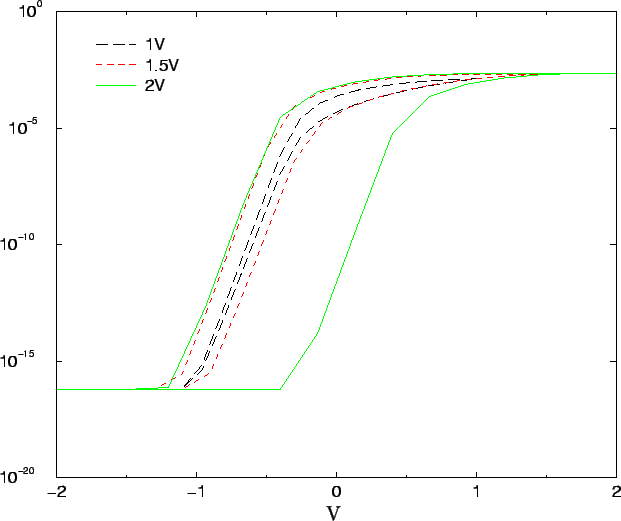

**Figure 8.18:** Transfer characteristics for different peak voltage, logarithmic scale
$\resizebox{\fulllength}{!}{ \includegraphics[width=\fulllength]{comp_log_img.eps} }$
