9.1.1 The TCAD Experiment

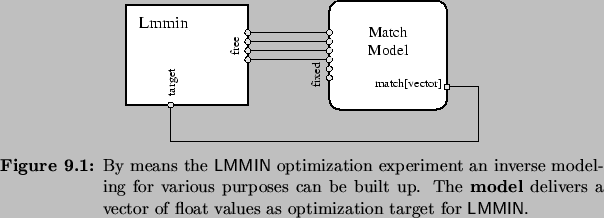

Figure 9.1 shows how the LMMIN optimization experiment can be used in concert with a network-model in order to establish an automated calibration system.
$\begin{Figure} % latex2html id marker 9118\centering \includegraphics{fig/invm... ...ector of float values as optimization target for \textsf{LMMIN}{}.} \end{Figure}$
In this configuration the model is not delivering any physically relevant quantities like currents or so, but rather quantifies the accuracy -- with respect to measurements -- of the models which are included in this network-model.
