6 VISTA Data Level Implementation

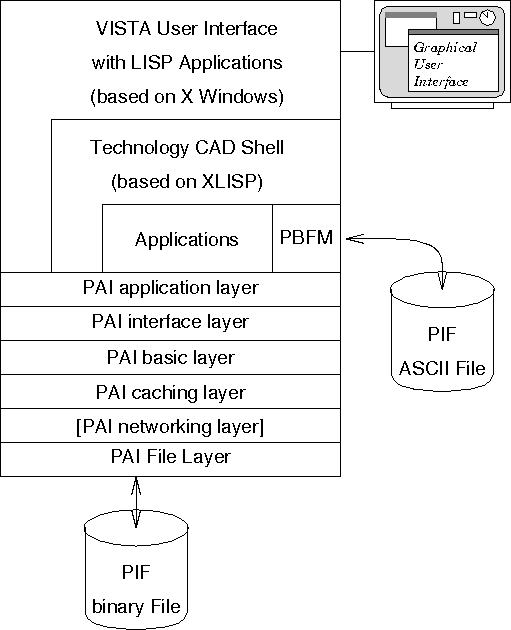

Figure 6.1: VISTA data level core diagram

Fig. 6.1 shows the core components of the VISTA data level (cf. Fig. 3.4). The PIF Binary File Manager (PBFM) - implemented as a separate TCAD tool - is responsible for conversion of PIF ASCII files into PIF binary files (PBFs) vice versa. The PIF ASCII format which was presented already in Section 4.2 was the first ``implemented'' component by defining its syntax and associated rules. This syntax description is given in Appendix A. The VISTA components above the data level are described in [Hala94][Pimi93] and [IuE94]. The thickly framed components of Fig. 6.1 make up the PIF Application Interface (PAI) which will be described in detail in the next sections.
