2.4.3 SIESTA Graphical User Interface

The Graphical User Interface (GUI) of the SIESTA framework is based on the MOTIF widget-set [24] and is encapsulated into several LISP classes. In Figure 2.2 the Graphical User Interface of the queue manager is shown. In the upper part of the panel, available hosts, individual limits, and current and predicted loads are shown. The lower part shows a list of the queue where the active and waiting tasks are marked with different colors.

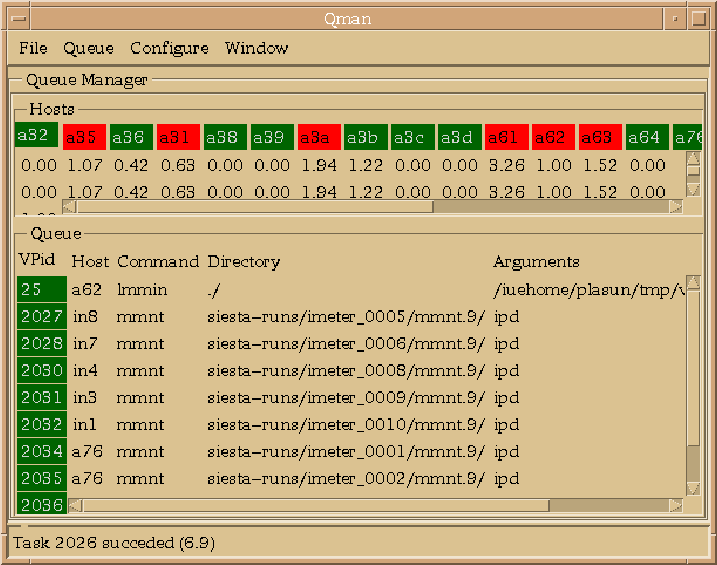

Figure 2.2: Graphical User Interface of the queue manager module with the available hosts and the queued jobs.
\includegraphics[width=\linewidth]{graphics/qm.eps}

In the following chapters the required functions for a general optimization environment, like statistical analysis, and optimizers, and also how this functionality is implemented into the framework are described.
