3.1 The Device Simulator MINIMOS-NT

In Fig. 3.1 the standard terms for layers in a vertical pseudomorphic HEMTs structure are shown.

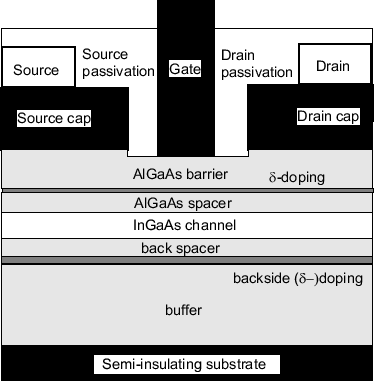

Figure 3.1: Standard terms for layers in a HEMT used in this work.

\includegraphics[width=10 cm]{D:/Userquay/Promotion/HtmlDiss/fig3aneu.eps}

These terms will be used consistently in the course of this work, though the material types and compositions vary.
