3.4.1 The Simulation-Flow-Model's Description


\begin{Modeldesc}
% latex2html id marker 2760
\caption{

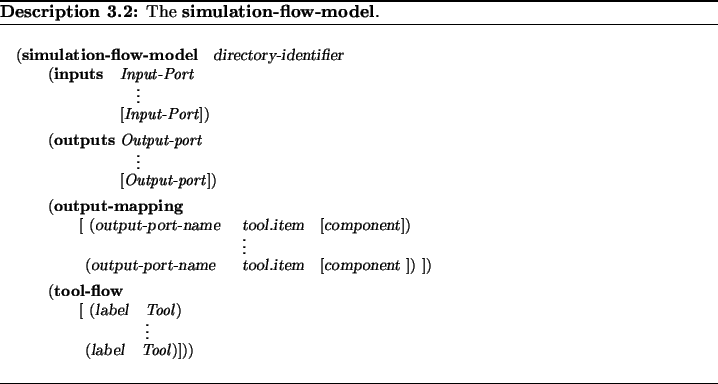

The \textbf{simu\-la\-ti...
...uad \=\textit{Tool})]))\end{tabbing}\end{minipage}\end{flushleft}\end{Modeldesc}


\begin{Modeldesc}
% latex2html id marker 2772
\caption{

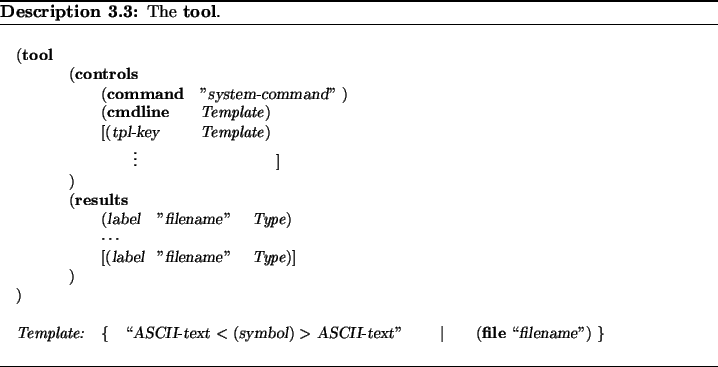

The \textbf{tool}{}.}\sm...
...\textsl{filename}'') \}\end{tabbing}\end{minipage}\end{flushleft}\end{Modeldesc}

As can be seen from Description 3.2, the simulation-flow-model consists of three additional declarations compared to a bare model. The tool-flow defines the sequence of simulation tools which are to be executed and the output-mapping selects specific outputs of simulation tools to be associated with output ports of the simulation-flow-model. The directory-identifier defines the name of the sub-directory which will be used as the root directory for evaluations of the simulation-flow-model.
