6.4.1 Algorithm Overview

Figure 6.15 shows the flow diagram of the modified advancing front algorithm. Delaunay triangles are extracted from the surface triangulation to form an oriented initial front. These triangles have the purpose of a seed which is inserted into a queue to ``grow'' tetrahedra.

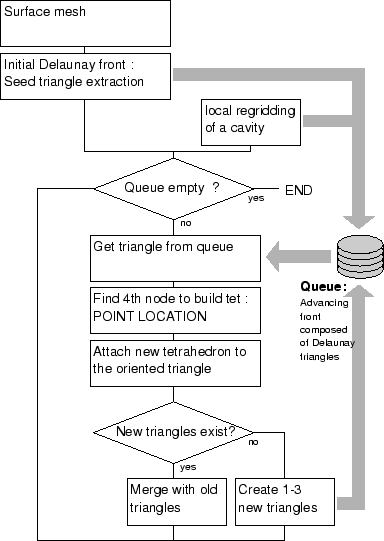

Figure 6.15: Modified advancing front algorithm.
\includegraphics [height=12cm]{ppl/}

The algorithm starts with a non-empty queue. It does not require the queue to hold all surface triangles which represent the boundary. One triangle per enclosed segment is sufficient. The surface triangulation has two purposes.
  1. It provides the initial front for the advancing front algorithm to start with. One triangle per segment is enough and is called a seed triangle.
  2. It provides a border for the advancing front algorithm which cannot be passed.
The triangles of the initial front and all later generated triangles of the advancing front have an orientation defined by the order of their vertices. Given a seed triangle (which is taken from the queue) a tetrahedron is attached to that side of the triangle which faces the half space in which its normal vector is directed. The tetrahedron is constructed with a a fourth point which has a positive distance to the seed triangle relative to its normal vector. In this way a front side and a back side of triangles is distinguished.

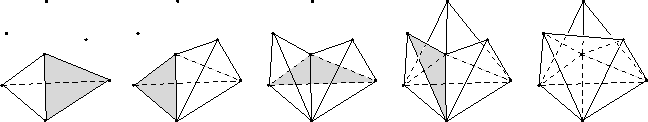

Figure 6.16: The triangle to which the next tetrahedron is attached is shaded for each step.
\includegraphics [width=0.9\textwidth]{ppl/incr_alg.eps}

Repeatedly attaching tetrahedra to the front sides of the triangles of the queue, removing them from the queue when they have been processed, and inserting new triangles into the queue leads to a growth process of tetrahedra (Fig. 6.16, Fig. 6.17). Hence, the queued triangles form the advancing front at all times. It advances when a new tetrahedron (attached to a triangle which is removed from the queue) generates new triangles which are inserted into the queue. Generally, a created tetrahedron can produce any number between 0 and 3 new triangles. During the beginning of the tetrahedralization process each created tetrahedron will more likely produce 3 new triangles and the size of the queue will increase rapidly. Later on the advancing front will merge with itself or parts of the surface triangulation and fewer new triangles are produced. A tetrahedron consists of $n$ new triangles, $(3-n)$ previously generated triangles, and the triangle to which it is attached. The $(3-n)$ previously generated triangles must have been previously inserted into the queue or belong to the initial surface triangulation. They are part of the advancing front. When they are encountered during the creation of a new tetrahedron, they are removed from the queue and the advancing front is stopped. If $n$ is zero the creation of the tetrahedron results in a decrease of the size of the queue. When the queue has run empty the meshing process terminates.

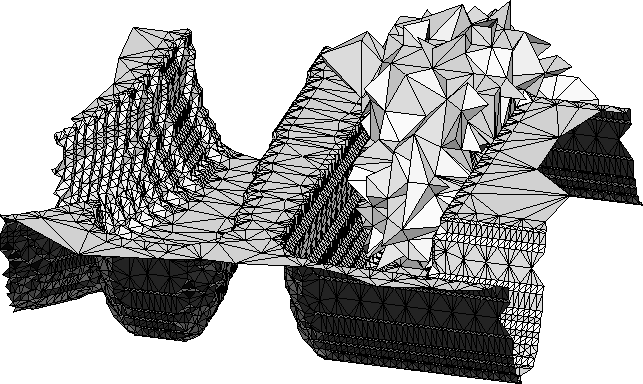

Figure 6.17: A snapshot of the growing mesh generated by the modified advancing front algorithm.
\includegraphics [width=0.9\textwidth]{ppl/}

The following questions arise:

  1. What degree of freedom does the algorithm have to choose a tetrahedron to be attached to a triangle of the queue ? What kind of tetrahedron will be chosen ?
  2. How is it guaranteed that the advancing front does not pass through itself or the given boundary triangulation ?
  3. How is it guaranteed that no part of the domain remains untetrahedralized ?
First it is assumed that the Delaunay Triangulation is unique and degenerate point sets do not exist. Given a fixed mesh point distribution and an oriented triangle only one point can complement the triangle to form a valid Delaunay tetrahedron to be attached to the triangle's front side. The meshing algorithm will choose to create exactly this tetrahedron. Intrinsically it is not able to create non-Delaunay tetrahedra as will be seen later on.

To answer the second question the following is observed.

Lemma 6.1   The advancing front cannot build loops, intersect or overlap with itself, or pass through Delaunay borders as long as it is guaranteed that identical triangles are never stored more than once.

Proof 6.1   Under the assumption of a unique Delaunay Triangulation any Delaunay triangle must be present within the tetrahedralization. No Delaunay triangle exists which is not part of the tetrahedralization. If one or more such triangles would exist the Delaunay Triangulation would not be unique. Given the facts that the algorithm only produces Delaunay tetrahedra and the advancing front separates the tetrahedralized domain from the untetrahedralized domain, it follows that at all times the advancing front consists entirely of Delaunay triangles. Assume that one part of the advancing front passes through another part of the advancing front. Then, part of the front must be located in the interior of a tetrahedralized region. Since the front consists of Delaunay triangles they must be part of the unique tetrahedralization. Hence, during the tetrahedralization Delaunay triangles must have been produced and stored where identical copies already existed as part of the front.

Such a test whether or not an identical triangle already exists is trivial and does not cost performance. It guarantees that the algorithm terminates. Since no Delaunay triangles are generated more than once and the overall number of Delaunay triangles $t$ in a Delaunay Triangulation is finite, the algorithm terminates after at most $t$ steps.

To see that complex structures are rigorously meshed regardless of whether or not they are multiple connected the following is examined.

Lemma 6.2   No volume is left untetrahedralized unless it is enclosed by a surface triangulation to which no seed was provided.

Proof 6.2   Assume that part of the domain remains untetrahedralized and the algorithm has terminated. The algorithm must only terminate if the queue holding the advancing front is empty. The untetrahedralized region must be separated from the tetrahedralized region or the outside of the domain by a surface triangulation $T_{sep}$. First, assume that $T_{sep}$ contains at least one triangle that is part of a tetrahedron and was generated during the tetrahedralization process. Then, this triangle must have been inserted into the queue. It can be attached to at most one tetrahedron, because $T_{sep}$ was defined to be the border between the tetrahedralized and the untetrahedralized region. Since it would have only been removed from the queue if a second tetrahedron would have been attached to it, the queue cannot be empty and the algorithm cannot have terminated. Second, assume that $T_{sep}$ does not contain triangles produced during the tetrahedralization. Then, it must entirely consist of triangles present in the given boundary surface triangulation. Since it is a closed region, the boundary defines a segment. Under the requirement that at least one boundary triangle per segment is inserted into the queue the algorithm cannot have terminated.
