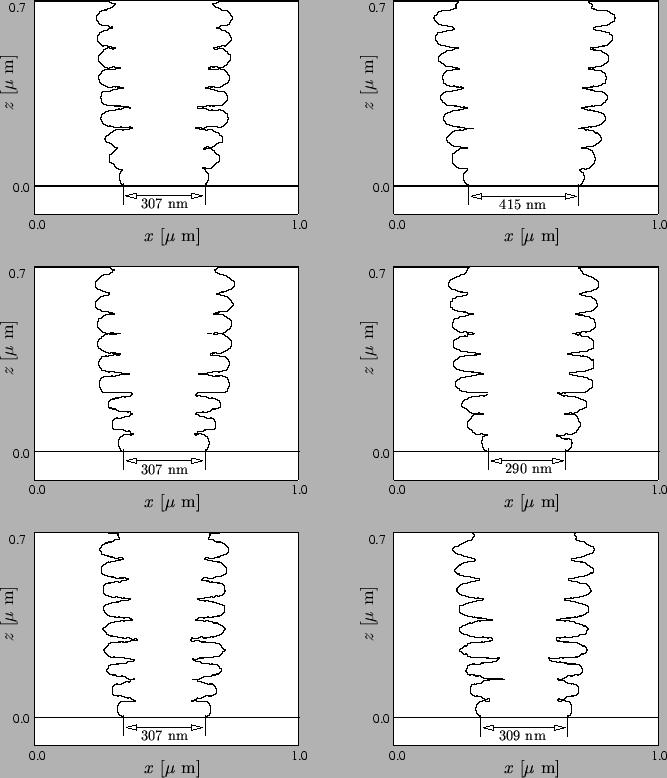

Figure 8.27:
Cross sections of the resist profiles of the contact holes printed
over a planar silicon substrate (upper: coherent, middle: circular,
lower: quadrupole; left: best focus, right: 1
m defocus above).
|
|

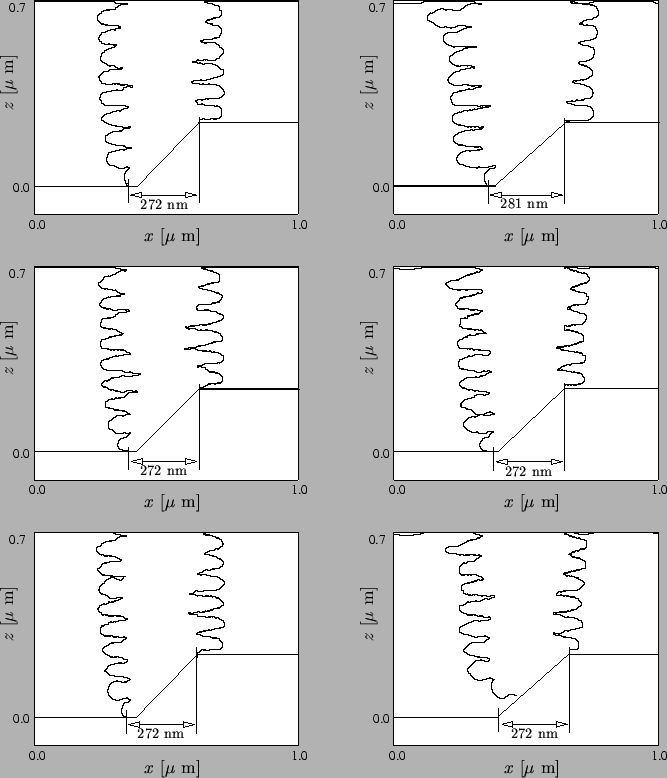

Figure 8.28:
Cross sections of the resist profiles of the contact holes printed
over a dielectric oxide step (upper: coherent, middle: circular,
lower: quadrupole; left: best focus, right: 1
m defocus above).
|
|

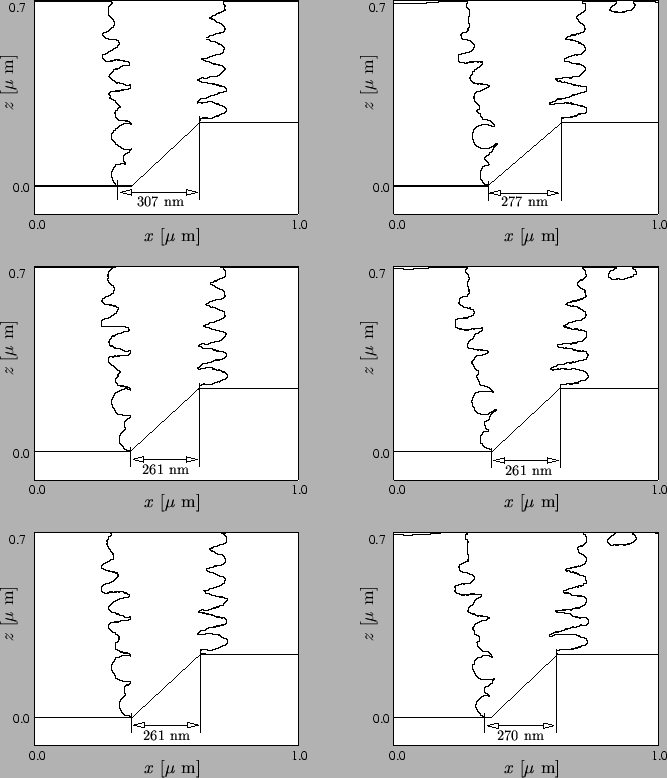

Figure 8.29:
Cross sections of the resist profiles of the contact holes printed
over a reflective a-silicon step (upper: coherent, middle: circular,
lower: quadrupole; left: best focus, right: 1
m defocus above).
|
|
