C Auxiliary PIF Tools

  The manipulation of large PIF files in VISTA/SFC is supported by a number of auxiliary tools to perform operations that are time-consuming or computationally intensive. Table C.1 gives a brief summary of tools and purposes.

 table3109

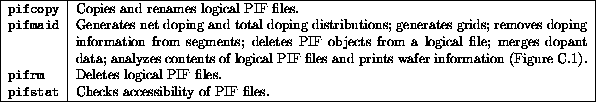

Table C.1:   Auxiliary PIF tools.

 figure3132

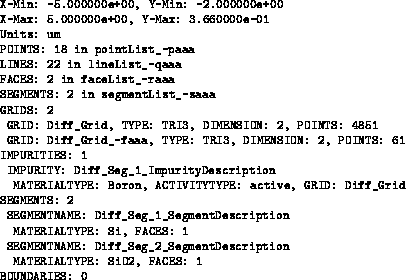

Figure C.1:   Summary of PIF wafer information generated by pifmaid.
