8.1.4 Configuring the Optimization Experiment

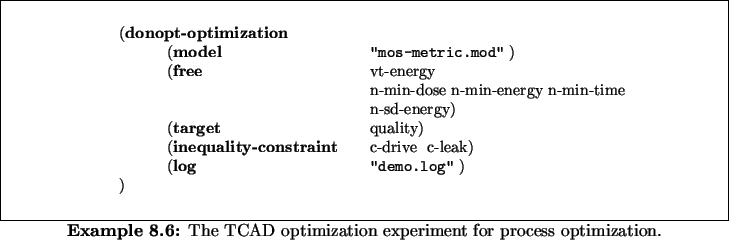

Example 8.6 defines the experimental configuration for the DONOPT optimization tool conforming to Section 4.2.1. In this definition the model entry selects a file named "mos-metric.mod" containing the model depicted in Figure 8.5. The entry free denotes the VT implant energy (vt-energy), the LDD-implant dose and energy (n-min-dose, n-min-energy), the LDD-annealing time (n-min-time), and the phosphorus source/drain implant energy (n-sd-energy) to be utilized by the optimizer in order to improve the optimization target. The target of the optimization is selected to be the output port quality of the model.


\begin{Example}
% latex2html id marker 8820
\caption{
The {TCAD}{} optimization
...
...\> \texttt{\dq{}demo.log\dq{}} )\\
)\\ \end{tabbing}\end{minipage}\end{Example}
