5.3.1 First-Order Sigma-Delta Converters

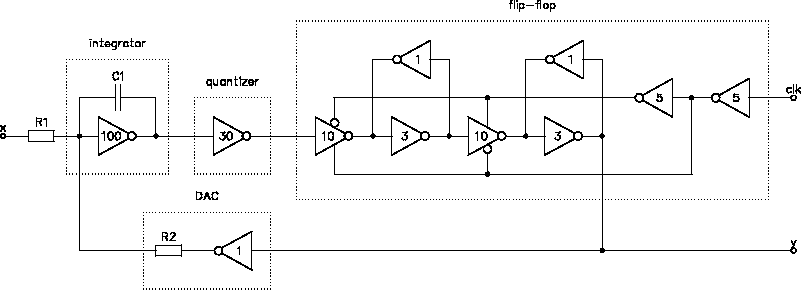

The ULP realization is shown in Fig. 5.14. The design uses only inverters and tri-state inverters, and two further components: a resistor R1 and a capacitor C1. While C1 and R2 are fairly uncritical (their non-linearities can be modeled with an additional quantization non-linearity), the linearity of R1 is essential. The supply voltage is 0.2V, the input signal bandwidth is 1MHz and the oversampling frequency is 100MHz (this amounts to an oversampling ratio of 5.6 octaves).

Figure 5.14: Low-voltage first-order sigma-delta ADC design

Fig. 5.15 shows the simulation result from the conversion of a 100kHz sine signal. The in-band spurious signals are essentially white noise and some small harmonic components. The latter are not due to harmonic distortions, they are caused by granular cycles, which occur when the value of $\ensuremath{f_{\mathit{s}}}\xspace /\ensuremath{f_{\mathit{os}}}\xspace$ is rational. Such unwanted tones can be reduced by dithering, i.e., by adding a small noise signal to the input (and subtracting it digitally from the output). The white-noise component, which is significantly greater than the in-band noise predicted by the ideal 9dB/octave formula, is caused by the finite gain A of the integrator: the output signal of the integrator appears at its input as $\ensuremath{V_{\mathit{in}}}\xspace = -\ensuremath{V_{\mathit{out}}}\xspace /A$. This error signal which has a random saw-tooth-like shape, is not noise-shaped because it is introduced before the integrator, so its spectrum is white. The SNR determined from the spectrum is 33dB, which is 17db less than the ideally expected 50dB. Harmonic distortions of the output in this circuit can only occur, when the input signal becomes so large that the integrator starts to saturate. In this case the error signal at the integrator input becomes correlated to the input signal, which results in harmonic distortions of the output (see also Figs. 5.17 and 5.18).

To obtain a sufficient resolution in the frequency domain several periods of the input signal must be simulated (8 periods in this case). Such simulations can be quite expensive in terms of CPU time when the whole circuit is simulated on the transistor level. Typical simulation times for this circuit with MINISIM on a DEC Alpha Station 600 are 24 hours.
