The determination of the static noise margins
NMH, NML would require circuit simulation of an inverter.
A close estimate of the noise margins can be determined from
just two DC simulations (4a, 4b).
Exploiting the fact that the input voltages VIH, VIL will be
around VDD/2 and that one of the output transistors is in saturation,
the following algorithm can be used to determine the noise margins:
The currents and conductances at the critical voltages (i.e., where
the inverter gain is |Ainv|=1) are estimated by scaling two IV curves
according to Fig. 6. With
I1(V) = ID(VG=V,VD=VDD/2),
I2(V) = ID(VD=V,VG=VDD/2), and
Isc= I1(VDD/2) = I2(VDD/2)
the critical voltages VIL, VOH can be obtained by solving:
 |
(7) |
The input-low noise margin NML is then
 |
(8) |
and the input-high noise margin is determined accordingly.
In the case of a single-device analysis the inverter transfer curves
are symmetrical and the noise margins are NML= NMH= NM.
The noise margins of gates can be estimated also by scaling the currents
I1, I2 according to the fan-in and the logic style
(e.g., for a static-logic NAND gate with a fan-in of Fin we obtain
).
Inverter gain and output voltage swing are determined as
and
OS= (VDD- 2 IoffRon)/VDD
from 4a/4b
and 2/5a respectively.

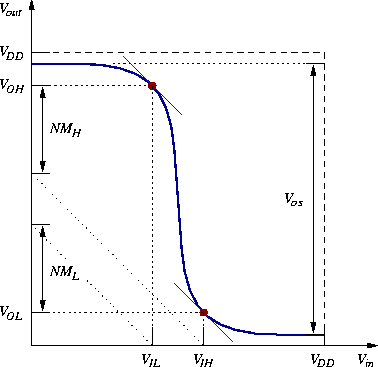

Figure 5:
Definition of static noise margins and output swing
 |

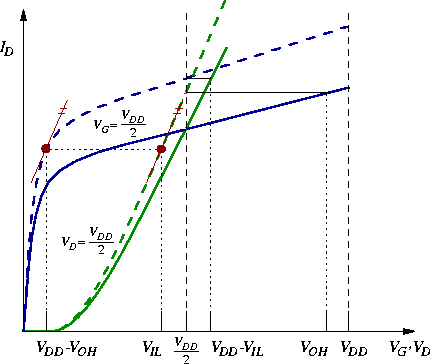

Figure 6:
Extraction of static noise margins
 |
