B.2.2 POINTS Section

The POINTS sections contains a global list of points. All grid references that are defined in GRID sections refer to that list. Fig. B.4 depicts the syntax definition of the POINTS section.

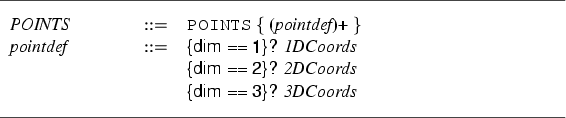

Figure B.4: The POINTS section. Semantical predicates are used to support the detection of an erroneous mixture of geometrical dimensions.
\begin{figure}\hrulefill\par\ \par\vspace*{-0.2cm} %% \begin{tabular}{p{2.5cm}ll... ...\it 3DCoords} \\ \end{tabular}\par\ \par\vspace*{-0.2cm} \hrulefill \end{figure}
