B.2.3 SEGMENTS Section

The SEGMENTS section contains an arbitrary number of segments and (optionally) boundaries. In turn each segment contains an arbitrary number of grids and attributes. Each attribute references exactly one grid, but not every grid must have an associated attribute. The semantical predicate "{dim == X}?" is used to distinguish elements of different geometrical dimension. Fig. B.5 depicts the syntax of the SEGMENTS section.

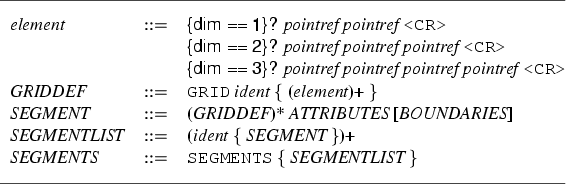

Figure B.5: Syntax definition of SEGMENTS section. Semantical predicates are used to distinguish grid elements of different geometrical dimension.
