The success of TCAD
depends on the reliability and efficency of the computer models used.
Due to the rapid progress of Si technology and the introduction of new
device types and materials, known models are continously being improved
and
new models are being developed. During this development process it is
important to compare the results of TCAD simulations to those obtained
by more fundamental methods.
Here the Monte Carlo (MC) approach, in which the movement of electrons
or
holes within a material of interest is sampled over a simulation time
period, proves to be very successful. As computational power increases,
MC methods can even be used in combination with TCAD device
simulations, helping to solve hot carrier and short channel problems.
Basically there are two representations of the band structure of a
material in an MC simulator: namely analytical expressions,
as the parabolic or non-parabolic approximations, or a full band
structure. In the latter case the band structure is calculated for a
representable part of the first Brillouin zone and then passed to the
MC simulator in form of a three-dimensional mesh. Despite the higher
computational costs, it is necessary to use the full-band approach for
hot carrier problems, because an accurate representation of the
band structure at higher energies is essential here.

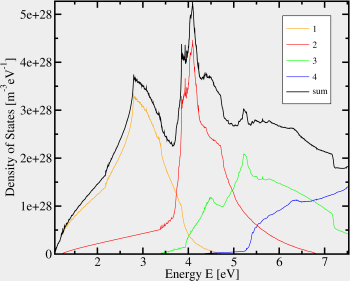

It has been shown that these computational costs can be kept
sufficiently low when using tetrahedrons as elementary mesh elements
and isotropic scattering models which only depend on the density-of-states
(DOS). Since the density of states is given by an integral over
an equi-energy surface in the Brillouin zone, and this surface is a
plane area within a tetrahedron, fast calculation of the DOS and fast
determination of the carrier state after a scattering process are
obtained.
Currently the expansion of the Vienna Monte Carlo Simulator (VMC)
to a full-band simulator is in progress, with the further goal to
integrate this simulator with Minimos-NT, which then
will provide the feature of two- or three-dimensionsional combined
TCAD/MC device simulations.
|
