To cover all demands in TCAD
expected in the near future in a robust, practical, computationally manageable,
and extendable manner, the standalone three-dimensional mesh generator
deLink was embedded into a generic meshing framework with the capacity to
use a set of meshing rules for n-dimensional mesh generation, where the rule set
describes how to connect elements in two and three dimensions. To keep the
implementation simple, the specification of the meshing rules is not part of the
application. Therewith the code complexity is independent of the number of
rules. Within this generalization the very important initial surface
triangulation for the advancing front Delaunay method is handled just as the
problem of very thin layers with a set of coordinated specific rules for surface
and volume meshing. The problem of graded and anisotropic mesh generation is
handled by applying transformations to the rule set where the generation of
points at run time can be achieved easily by defining rules which allow point
insertion. All different kinds of geometrical and topological adaptation can
also be handled by geometrical and topological adaptation rules if the
classification of degeneration is suitably chosen. For this reason, the developed
meshing framework can also easily be used for error estimation and adaptive remeshing.

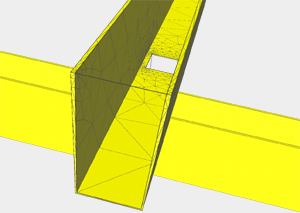

In interconnect structure modeling a large number of
comparatively simple geometric structures with very different spatial dimensions
is used, which can be seen in Figure 1. It is essential that very thin layers
should not impose a lot of mesh points, since they are normally not regions of
simulation. To generate these three-dimensional structures quickly and
accurately, the solid modeling language Laygrid of SAP was enhanced to meet the
present requirements in TCAD (tapered shapes, slanted geometries) with a
constructive solid geometry based language.

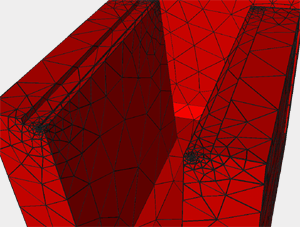

Within process simulation the surface elements (for instance, moving boundary) are
of great interest. On the one hand, process simulation depends strongly on the
ability to refine and unrefine (coarse) the surface elements, and on the other hand, topography simulation has to be linked with interconnect
simulation to simulate realistic structures. Especially topography simulation (Figure 2) can yield surface
structures of arbitrary complexity containing degenerated or even faulty
elements, where a subsequent surface mesh adaptation step must be performed in
order to enhance the quality of the surface triangles. This reduces the number of
mesh points which are not necessary for subsequent simulation steps.

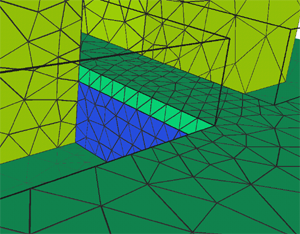

Device simulation, in strong contrast to process simulation, requires
direction-dependent mesh densities in some special locations to resolve highly non-linear quantities and to provide a very high quality of the mesh elements. In
the example depicted in Figure 3, small and flux-aligned elements are required in
the sensitive channel regions of the structure, while the element count outside
this domain should be kept to a minimum to reduce computation time. Therefore
the mesh generation engine can use orthogonally distributed points within special
regions to generate highly isotropic and flux-aligned elements.
|
