Even though
higher-order transport models like the energy-transport model were
proposed more than forty years ago, the classic drift-diffusion model
remains the most commonly used macroscopic transport model today. This
can be
attributed to the fact that available energy-transport models contain
many more unknown parameters and do not give significantly better
predictions compared to the simpler drift-diffusion model.
Interestingly, even with the best parameter choice available, the
energy-transport model gives an improvement over the drift-diffusion
model only for channel-lengths in the range from 300 nm down to 100 nm.
Below 100 nm, however, the energy-transport model delivers too high
terminal currents which are as inaccurate as the underestimated
currents delivered by the drift-diffusion model. Unfortunately, though,
the distributed quantities inside the devices, like the average
velocity, are not well reproduced by the drift-diffusion model because
non-local effects are neglected.
To overcome these limitations we considered macroscopic transport
models based on the first six moments of Boltzmann's equation, which
are
a natural extension to the drift-diffusion model (two moments) and the
energy-transport models (three or four moments). In addition to the
solution variables of the energy-transport model, which are the carrier
concentration and the average energy, the six moments model provides
the kurtosis of the distribution function, which indicates the
deviation from a heated Maxwellian distribution. The knowledge of the
kurtosis allows us to model non-equilibrium processes like hot carrier
tunneling and impact ionization with significantly improved accuracy
compared to lower-order models.
All model parameters are obtained from bulk Monte Carlo simulations,
which give a fit-parameter free transport model and leaves us with "no
knobs to turn." Having too many adjustable parameters is a particular
inconvenience inherent in many energy-transport models based on
analytical models for the mobilities and relaxation times. This was
found to be essential for higher-order models since the interplay
between the various parameters is highly complex and the numerical
stability of the whole transport model depends significantly on the
choice of these parameters. In particular, the Monte Carlo based model
outperformed its counterparts based on analytical mobility models
significantly, both in terms of its numerical properties and in the
quality of the simulation results.

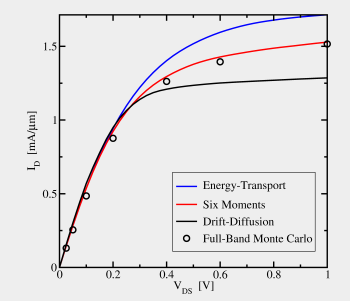

A comparison of simulated terminal currents obtained from the
drift-diffusion, energy-transport, and six moments models with
full-band
Monte Carlo simulations for a 50 nm double gate MOSFET is shown in the
figure. The typical terminal current overestimation of the
energy-transport model and the underestimation of the drift-diffusion
model are clearly visible. The six moments model, on the other hand,
stays close to the Monte Carlo results, even at such short channel
lengths. The internal quantities like the velocity show a much better
agreement with Monte Carlo data, which makes the six moments model a
good choice for TCAD applications.
|
