A series of physical effects are responsible for the limitation of the maximum allowed frequency of modern integrated circuits. Capacitive and inductive coupling give on-chip noise. Resistance, capacitance, and inductance of the interconnect lines cause rise, fall, and delay times. The skin effect forces the current to pass through the surface of the conductors. An overdriven inductive net produces harmful underdamped ringing step response. Power supply integrity is determined by the on-chip ground and power lines inductance combined with the decoupling capacitance.

These effects result in functional failure and depend on the spatial distribution of the interconnect lines. These parasities must be considered in integrated circuit technology during the design process at an early stage. For this reason highly accurate models and analysis methods are required to predict and optimize the behavior of interconnect lines for a given layout geometry. These challenging tasks can be significantly supported by  three-dimensional interconnect simulation.

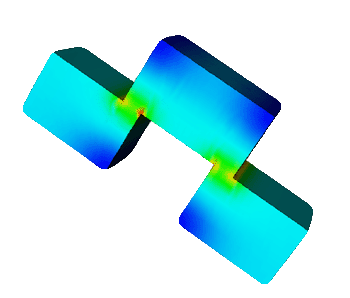

The three-dimensional finite elements method for the computation of partial differential equations derived from the Maxwell equations is used for the numerical electrical and magnetic field calculation. This approach allows inductance, capacitance, and resistance extraction in complex interconnect structures. Analytical electrical and magnetical field evaluation is used to revise the results of the numerical solution.
