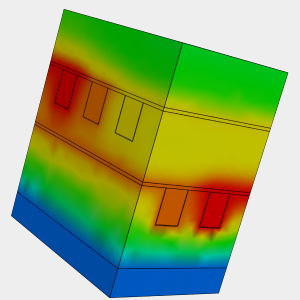

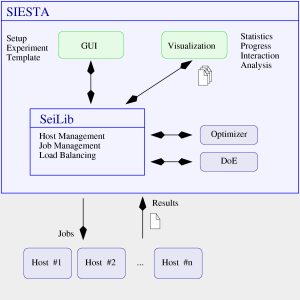

Dramatically shrunken device geometries require more and more complex models for simulation. Therefore, their optimization also becomes increasingly more time-consuming, especially if three-dimensional device structures are considered. Since current workstations offer increased performance at steadily decreasing costs, they can easily be included as computational nodes in existing simulation and optimization clusters. This allows the use of genetic optimization algorithms and the design of experiments on a large scale, both of which are normally very time-consuming. However, these new approaches require reliable software tools that are able to manage the available network resources efficiently and avoid inconsistencies and overloads of certain simulation nodes. Therefore, the integrated simulation and optimization framework SIESTA (Simulation Environment for Semiconductor Technology Analysis) has been developed at the Institute for Microelectronics. It integrates a global network resource management and a variety of optimizers and simulators to combine the advantages of optimization strategies like those of gradient-based and genetic optimizers (cf. upper figure). This loosely-coupled system places only minor restrictions on the external software tools. Additionally, fault tolerance has been included in the interface structures to guarantee a stable operation. With this variety of tools, the capabilities of the simulation framework SIESTA include investigations and optimizations of parameters for semiconductor process and device simulation as well as statistical analysis. Furthermore, this framework supports inverse modeling of devices and technological processes, which is useful for the extraction of specific material and process parameters. The information required includes measured data and an appropriate base model which allows SIESTA to optimize the chosen parameters automatically. This technique has already produced excellent results in process and device optimizations. Currently, thermal effects in polycrystalline semiconductors and complex-layered interconnect structures are being investigated. The three-dimensional interconnect simulator STAP is used to predict critical temperatures in some parts of the semiconductor. At high temperatures, however, conventional models do not predict the change of the electrical behavior correctly. Therefore it is necessary to include advanced models in device simulators which are valid in these temperature ranges. SIESTA can be used to calibrate analytical models included in device and circuit simulators. Furthermore, well-calibrated models are used to focus our investigations on complex-layered interconnect structures. The temperature distribution as a result of a three-dimensional transient electro-thermal simulation with STAP is shown in the lower figure, which depicts two heated lines as a result of global warming in the upper metal layer.
|
