Robert Entner
Dipl.-Ing. Dr.techn.
entner(!at)iue.tuwien.ac.at
Biography:
Robert Entner was born in Graz, Austria, in 1977. He studied electrical engineering at the Technische Universität Wien, where he received the degree of Diplomingenieur in 2003. He joined the Institute for Microelectronics in July 2003, where he is currently working on his doctoral degree. In summer 2005 he held a visiting research position at the IMEC research center in Leuven, Belgium. His current scientific interests include the investigation of negative bias temperature instability in high-voltage MOS structures.

Charge-Pumping Method

The excellent quality of the Si/SiO2 interface is one of the main reasons for the success of modern VLSI MOS technology. Therefore, it is very important to characterize the quality of this interface as precisely as possible.
The charge-pumping method has proved to be a very reliable and precise method, allowing an in-depth analysis of the interface directly in the MOSFET device. Additionally it requires only basic equipment and is relatively easy to set up. The effect was first reported by Brugler and Jespers in 1969. They reported a net DC substrate current when periodic pulses were applied to the gate of a MOS transistor, while the source and drain were kept grounded. The current was found to be proportional to the gate area and the frequency of the applied gate pulses. It was flowing in the opposite direction of the leakage current of the source and drain to substrate diodes. They showed that the current originates from the recombination of minority and majority carriers at traps at the Si/SiO2 interface. Therefore, the method can be used to measure the interface trap density in MOSFETs for the evaluation of MOSFET degradation. The major breakthrough for the charge-pumping method was the thorough investigation and correct explanation of the method, applied directly to MOSFET structures, by Groeseneken et al. in 1984.
The device simulator Minimos-NT is used for numerical analysis of the charge-pumping effect. For each base voltage (Vbase) of interest, a transient simulation of the gate pulse is performed. The resulting currents can then be plotted versus the base voltage to obtain the typical charge-pumping current ICP versus Vbase plot.

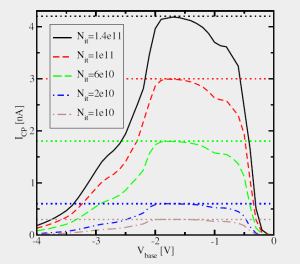

The figure depicts charge-pumping simulation results. The interface traps are of the acceptor type, equally distributed in the bandgap, and there are no fixed interface charges. The dotted lines show the results from the current model proposed by Groeseneken, obtaining excellent agreement with the numerical simulation results.
